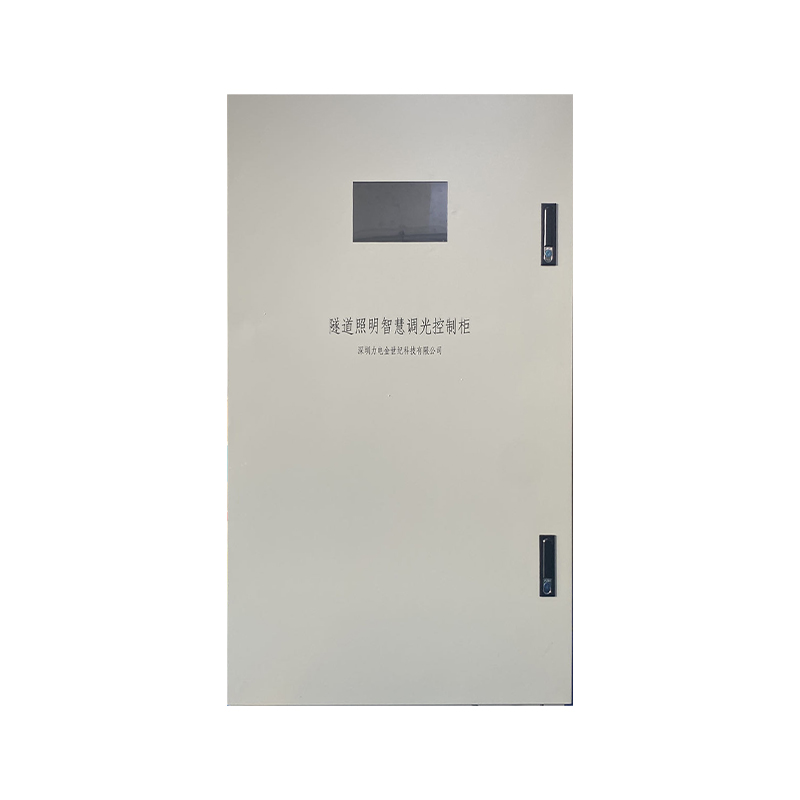

Smart Dimming Cabinet
LD-TG/II
The system collects data from the light sensor outside the tunnel, combines it with the lighting needs of different seasons, weather conditions, and time, and performs automatic time control on the tunnel lighting in groups. At the same time, the system can also collect information on vehicle flow through vehicle detection equipment, and perform intelligent dimming when there are few vehicles, so that the light is bright when the vehicle arrives and dimmed when the vehicle passes, thus achieving energy saving to the greatest extent while ensuring safety. The system collects and transmits data from light sensors, vehicle detection equipment, and lighting fixture monitoring in real time, performs multi-source fusion analysis, and based on the calculation results, the dimming equipment dynamically adjusts the brightness and color temperature of the lamps (the lamps must support adjustable color temperature), thus realizing intelligent lighting in the tunnel. This system is a mature and stable system that meets the needs of safety, energy saving, and intelligent lighting.
● Control cabinet power input: AC220V±15%, 50Hz±2Hz.
● Control cabinet touch screen size: ≥7".
● The touch screen can display the following contents: left and right tunnel function switching, real-time tunnel outside tunnel brightness value, real-time tunnel traffic value, tunnel lighting segment name, tunnel lighting segment dimming value, current dimming mode, etc.
● Touch screen operation: dimming mode switching (automatic mode, manual mode, emergency mode), real-time dimming of lighting segment, real-time switch of lighting segment, etc. Wired network cables back up each other to ensure normal and stable data transmission.
● Support WIFI, 4G, network port access to the Internet, multiple networks online at the same time.
● Powerful WIFI function, supports AP, STA, Repeater and multiple modes.
● Rich interfaces to meet different customer needs and applications, 4 WAN ports, 232 serial ports, 485 serial ports, USB and 4 AD/IO interfaces.
● Multiple wireless extensions, optional ZIGBEE, LORA, Bluetooth.
● Multi-network intelligent switching backup, data disconnection storage and transmission.
● Rich protocols, support transparent transmission, MODBUSRTU to TCP, MQTT.
● Support active polling of MODBUS devices, helping customers save the trouble of entering cumbersome SCADAModbus commands.
● Adopting industrial-grade high-speed 4G wireless communication module, equipped with 32-bit high-performance processor, the front-end information collection transmission is more real-time and faster.
● Downlink reserved for optional wireless communication, ZIGBEE, lora, Bluetooth, etc., can be configured with RJ45 wired interface communication function for more flexible use.
● Industrial design, metal shell, stable 7X24 hours uninterrupted work in various industrial environments and strong interference.
● Control cabinet size: customized according to on-site needs.
● Installation method: floor installation.
● Number of output channels: ≥6, independent dimming.
● Single-channel dimming output load: ≥200mA.
● Dimming output level: support 100 levels/256 levels, can be set.
● Output interface overload and overvoltage protection: support.
● Communication abnormal output protection function: support, channel dimming default value when communication is abnormal (configurable).
● Communication interface: 1 RJ45 interface, 10/100M adaptive, 1 RS485 interface.
● Output mode: support 0-10V/0-5V/PWM forward/reverse at the same time, set by buttons and screen.
● Operation function: local dimming, version query, IP network parameter setting, RS485 address setting and other operations.
● Working environment temperature: -40℃~+85℃.
● Dimming response time: <300ms.
